A Family Deck Designed to Grow
A young family with a toddler and a newborn wanted somewhere safe to be outside together, rain or shine. We built a two story Trex Lineage Carmel deck with Lineage Jasper trim, white Trex Select railing, a cathedral gable roof, a dry patio underneath, and lighting everywhere so the evenings last longer.
- 38 x 12 deckAbout 500 sq ft with stairs
- 19 x 12 roofCathedral ceiling, engineer stamped
- Dry space belowOtterTite system with a white ceiling
- About 6 weeksLate August to early October
Safe, covered, and built for a growing family
This family had just moved into a brand new home with nothing out back. With a toddler running around and a newborn on the way, they wanted a deck that felt safe, with room to eat together and a roof so they could be outside in the rain.
They also wanted the space under the deck to be useful, not just a dark spot behind the house. So we planned a two story build: a covered upper deck off the main floor and a dry, lit patio below it.
What we built
Every piece of this project was planned so the roof, the deck, and the space below work as one.
What it is made of
Every product here was picked to look sharp and stay low maintenance for a long time.
Trex Lineage Carmel and Jasper
Trex Lineage Carmel covers the deck and the border, with Lineage Jasper on the fascia and stair risers. Lineage is Trex’s top tier board with heat mitigating technology, so it stays cooler under bare feet.
Trex Select Railing and Gate
White Trex Select railing with black round balusters and a matching Trex aluminum gate to keep little ones safe. Compare railing
Cathedral Gable Roof
A 19 x 12 gable roof with 12 inch overhangs that ties into the house wall below the existing gable. The beams sit about 11 feet above the deck and the ridge about 15 feet, on a 5/12 pitch that matches the house. It is finished with a white vinyl soffit ceiling, white Azek wrapped posts and beams, shingles and gutters to match, fans, and recessed lights. More on covered roofs

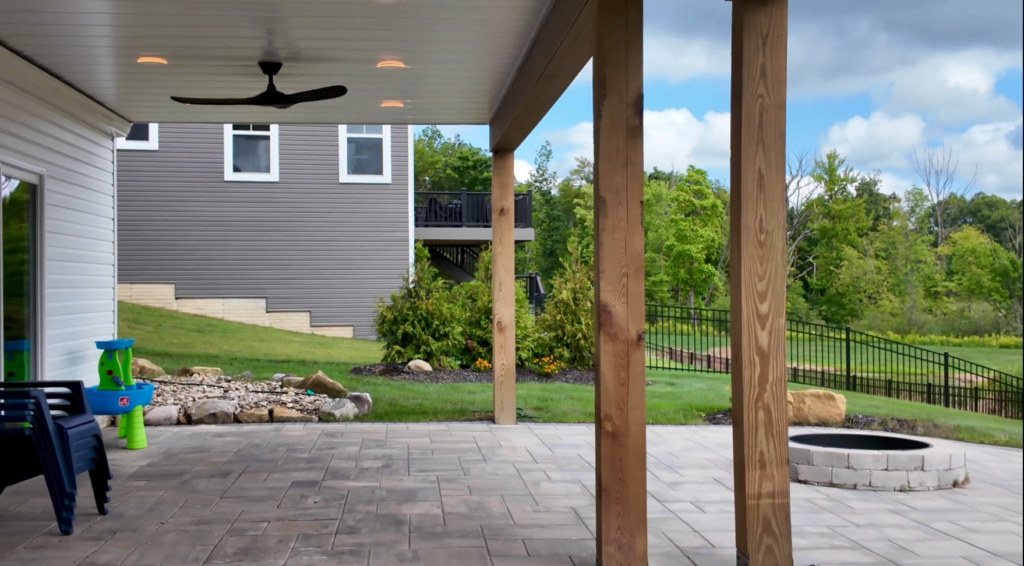

OtterTite Dry Space
An under deck system that keeps the patio below dry and gives it a finished white ceiling. More on under deck protection
Lighting Package
17 Trex post cap lights on the railing, 8 recessed lights and a fan up in the cathedral ceiling, and 10 recessed lights and 2 fans under the deck, plus outdoor outlets. More on lighting
Helical Piers
Helical piers go in fast, carry heavy loads, and will not heave in Ohio winters.
Every phase of the build
Tap any photo to see it bigger.
Before 4 photos

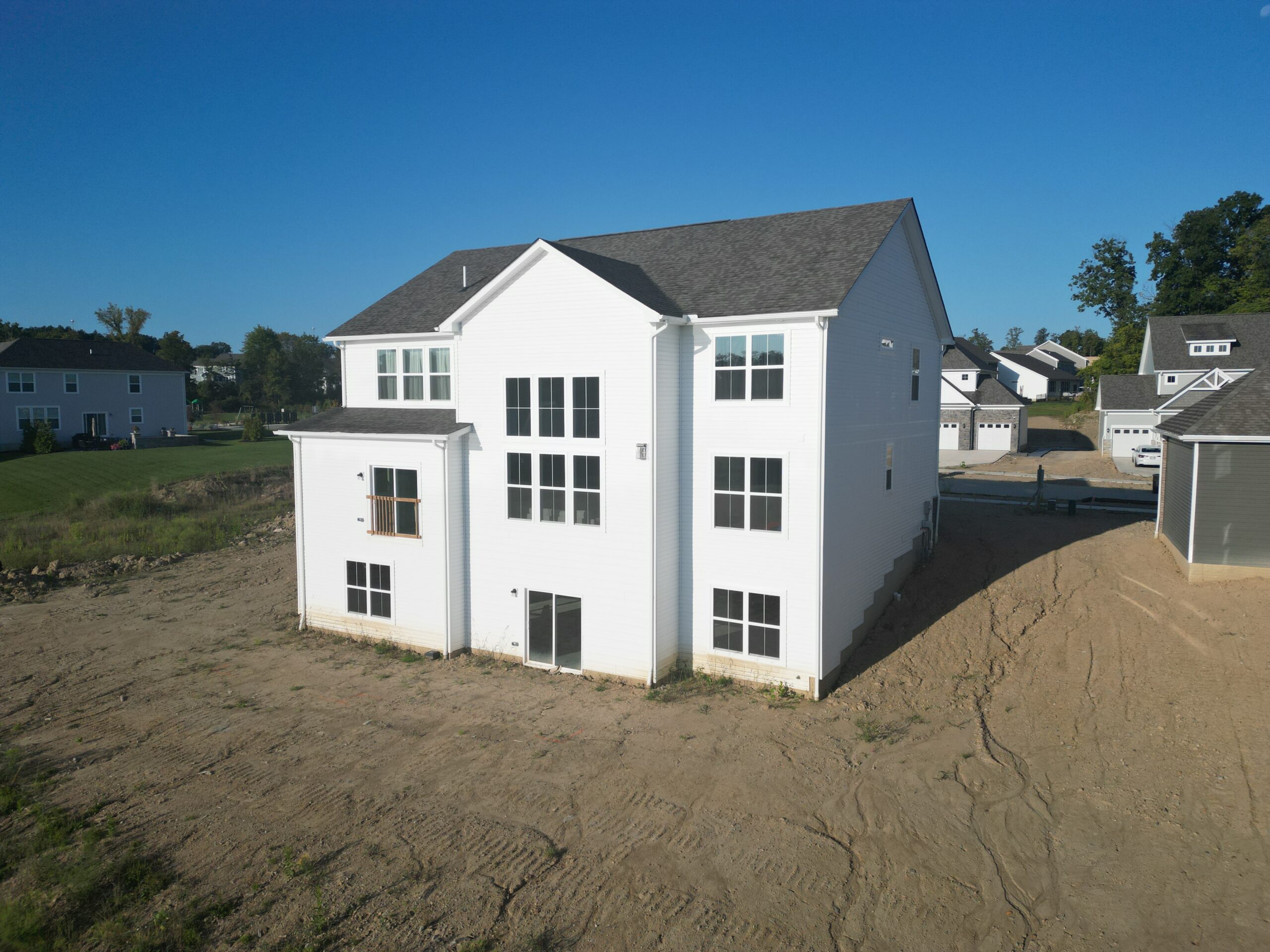

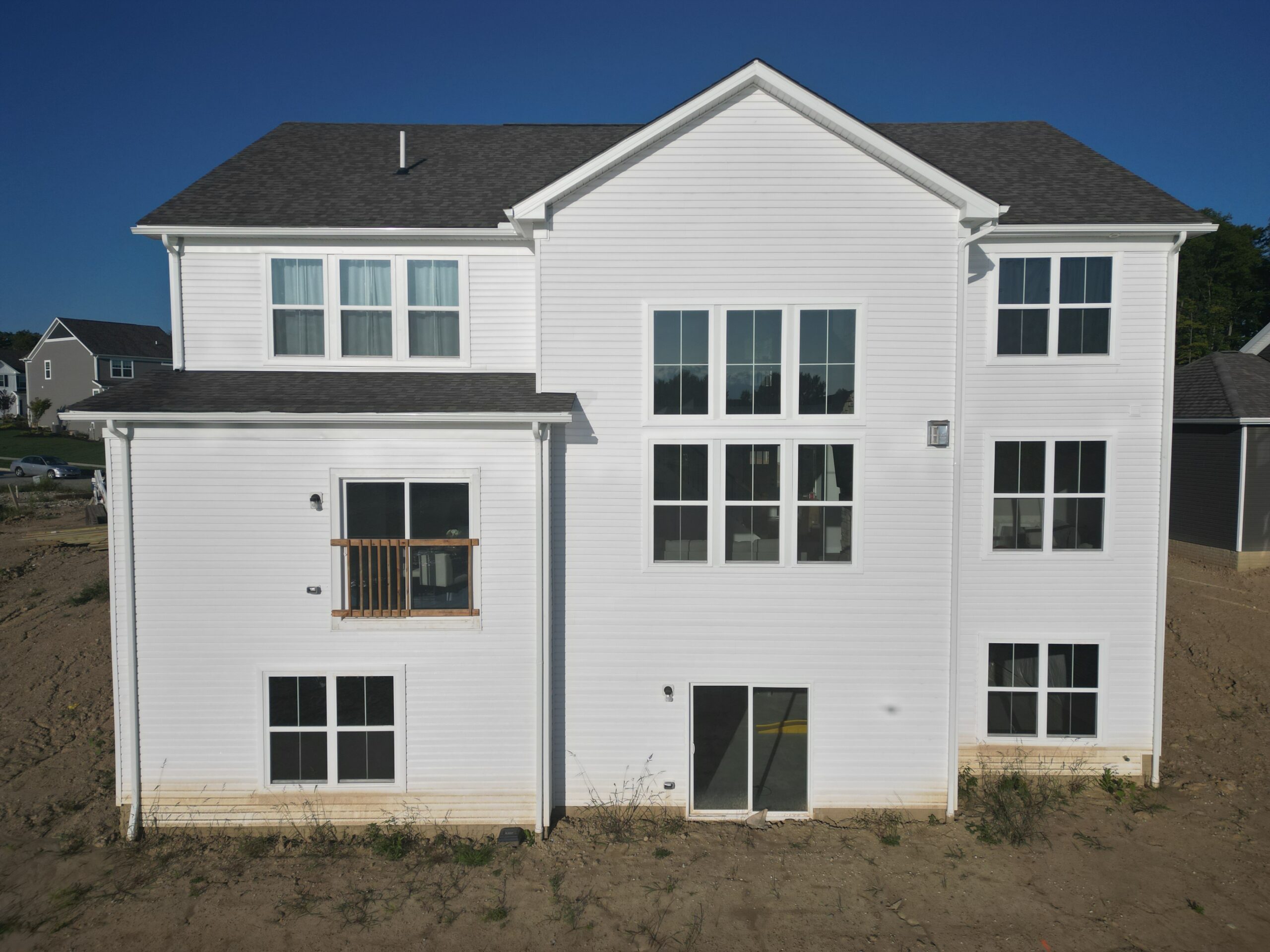

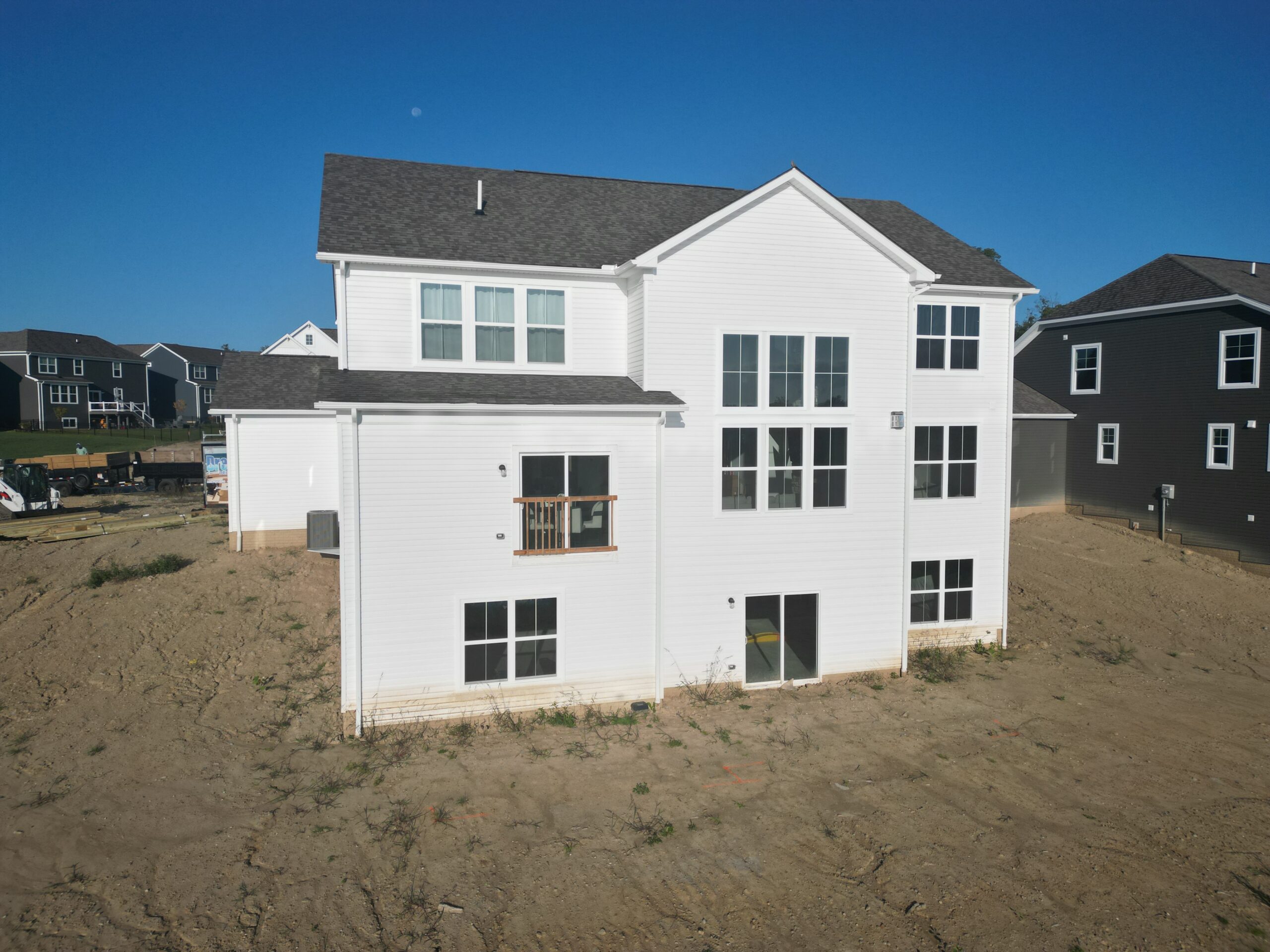

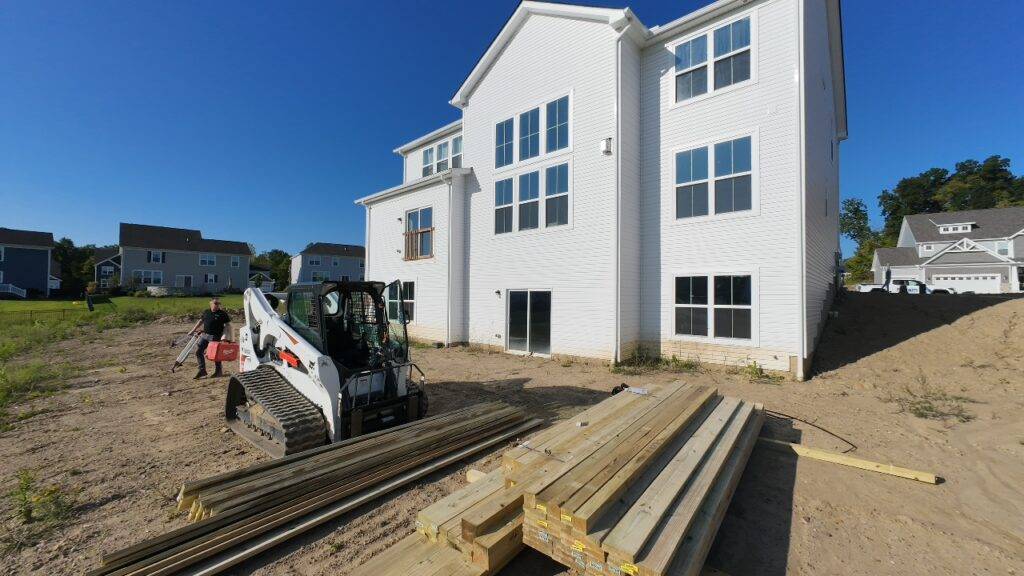

New construction home
New construction home
New construction home

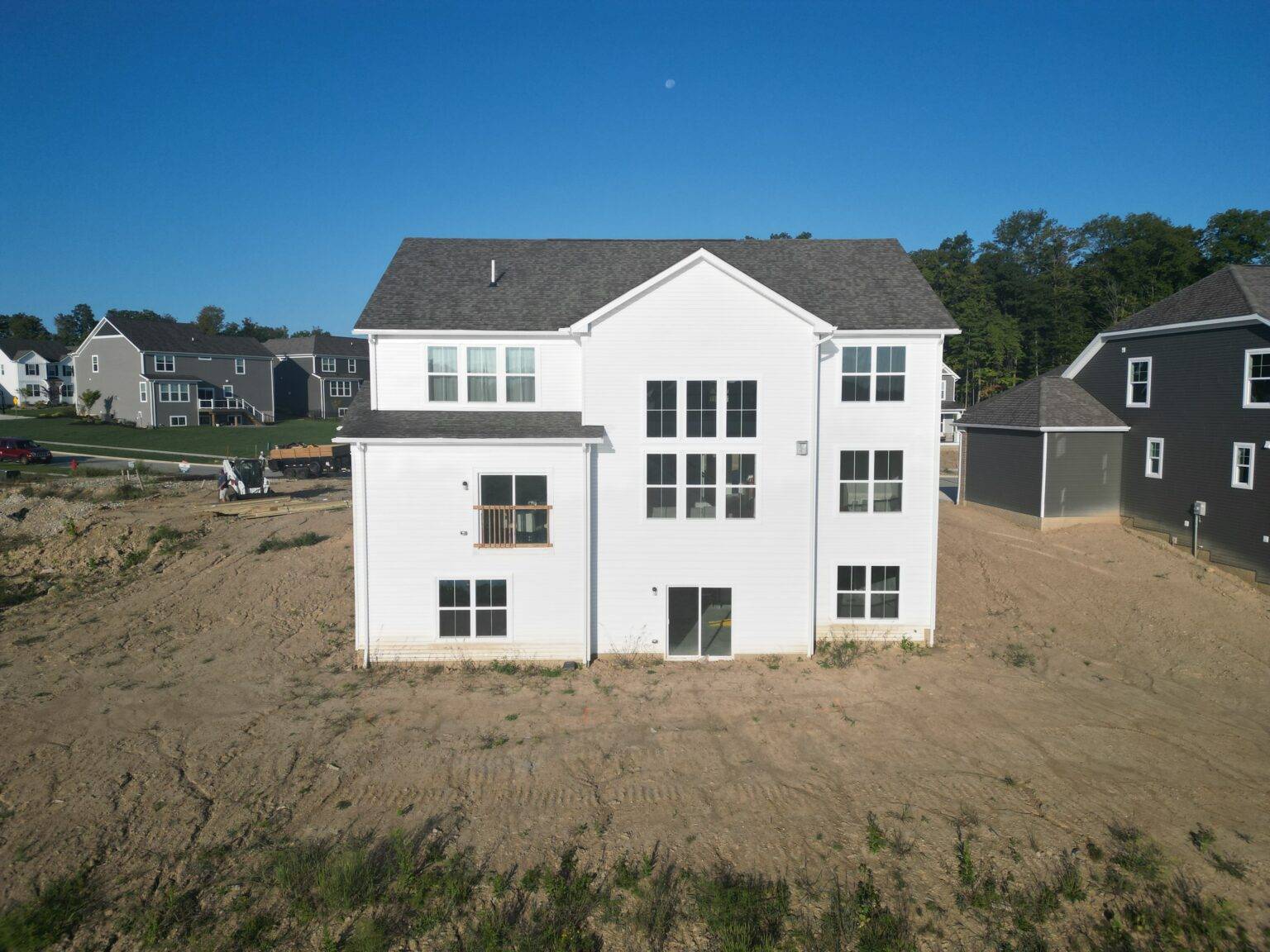

The new home with a bare backyard beforeThe Build 6 photos

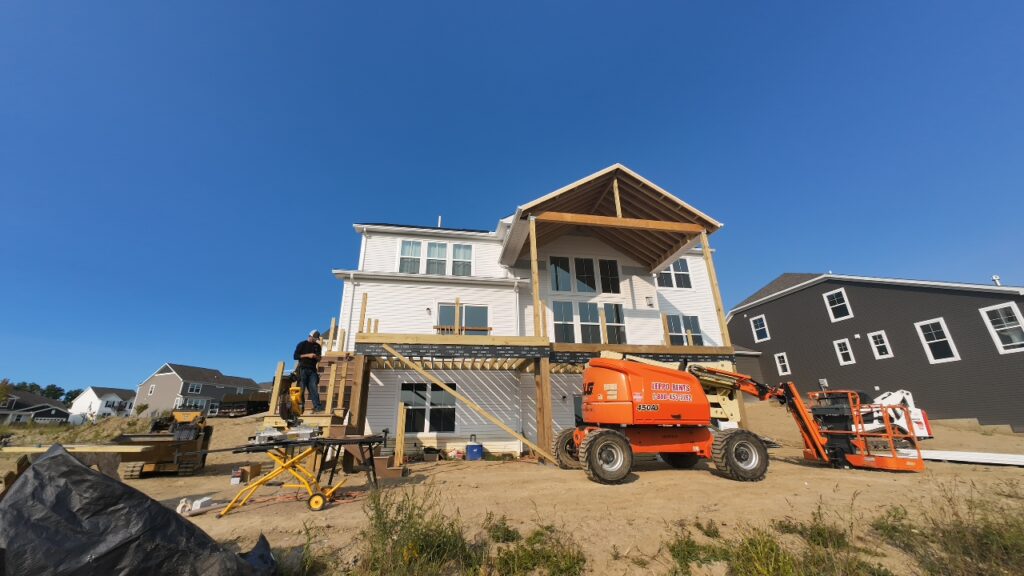

The roof framing takes shape over the up

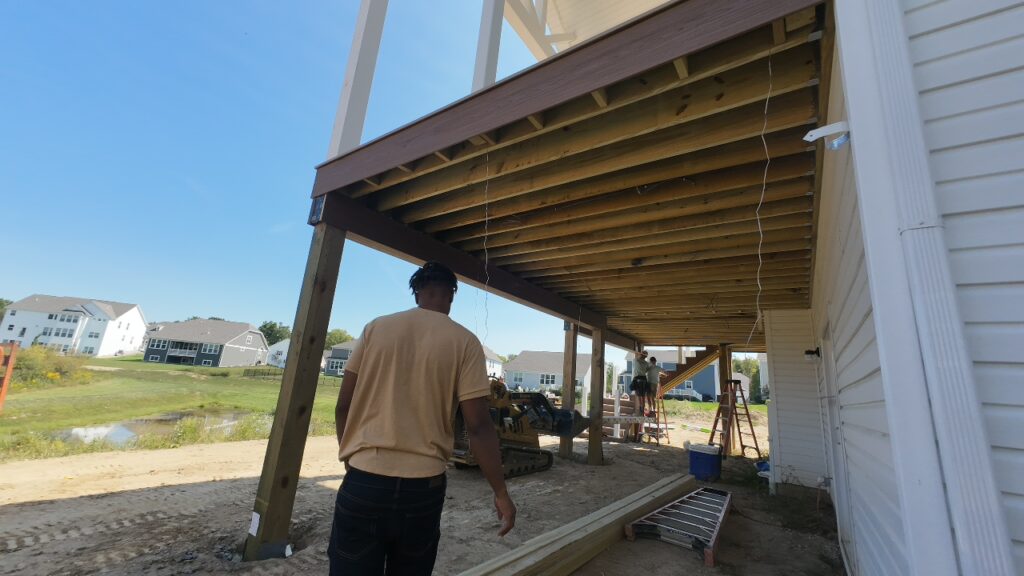

Finishing the underside of the upper dec

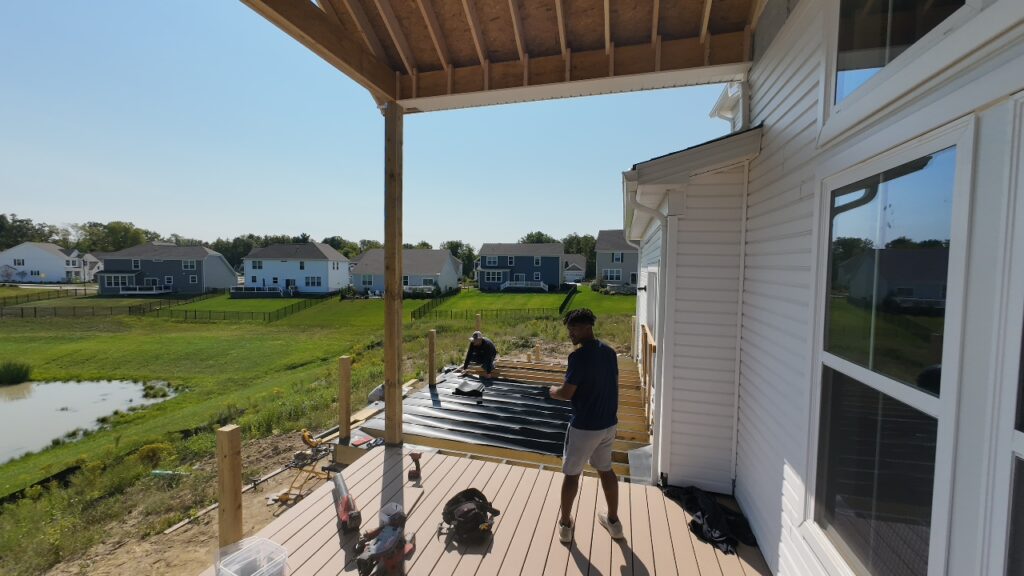

Walking the upper deck as the roof goes

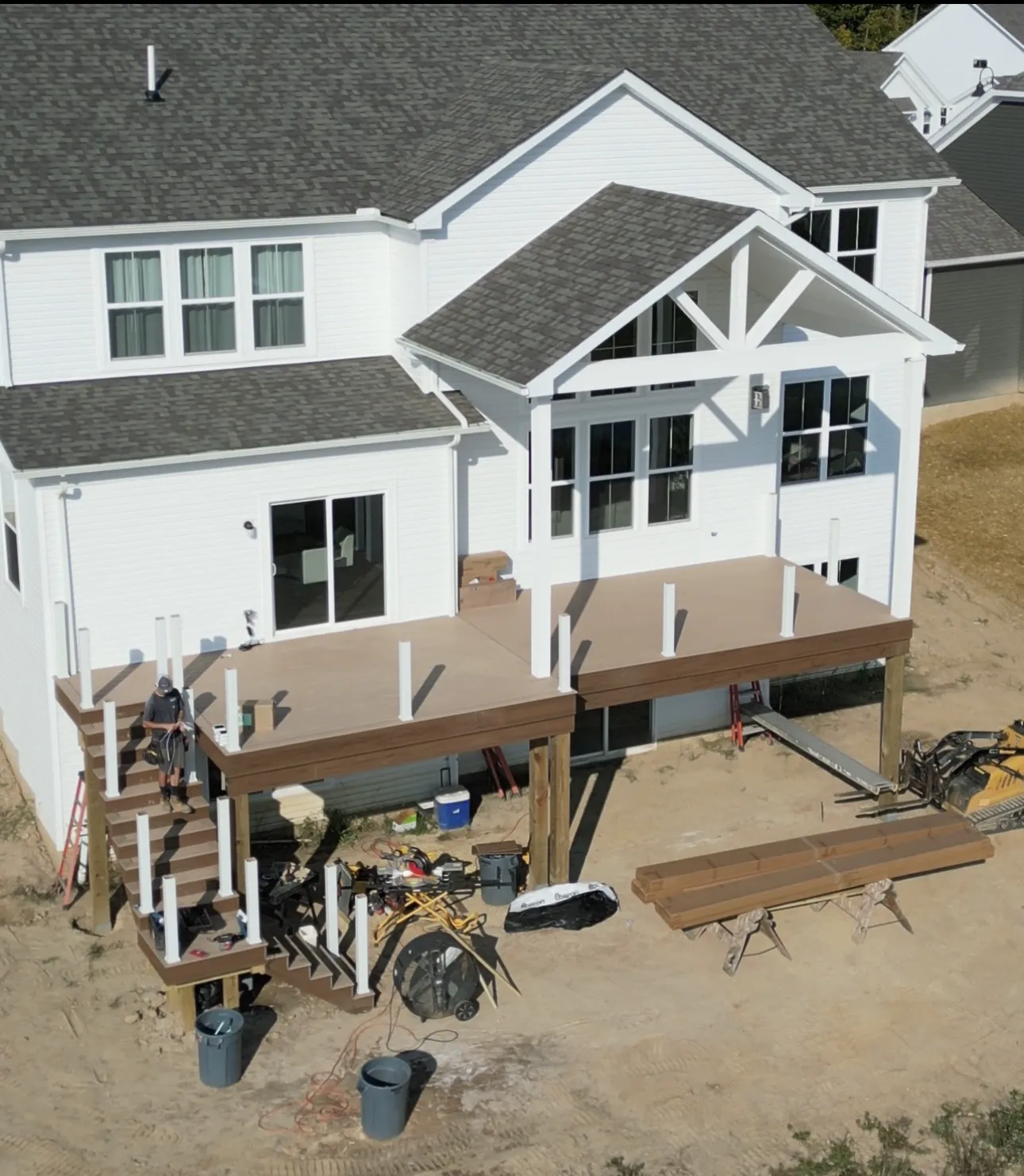

Railing posts and stairs going in on the

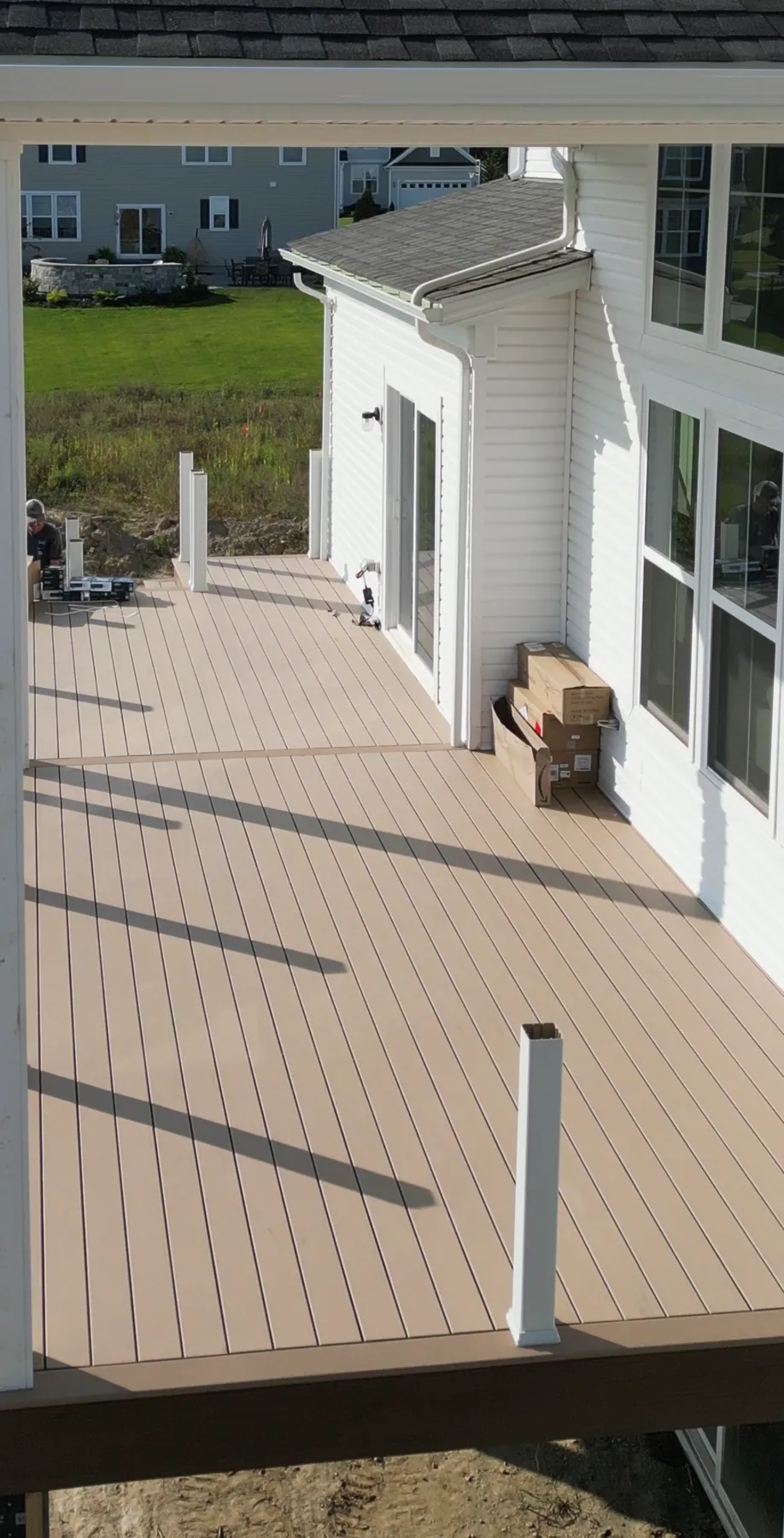

Picture frame border and a divider board
From Vision to Reality: Stunning Two StoThe Finished Deck 9 photos

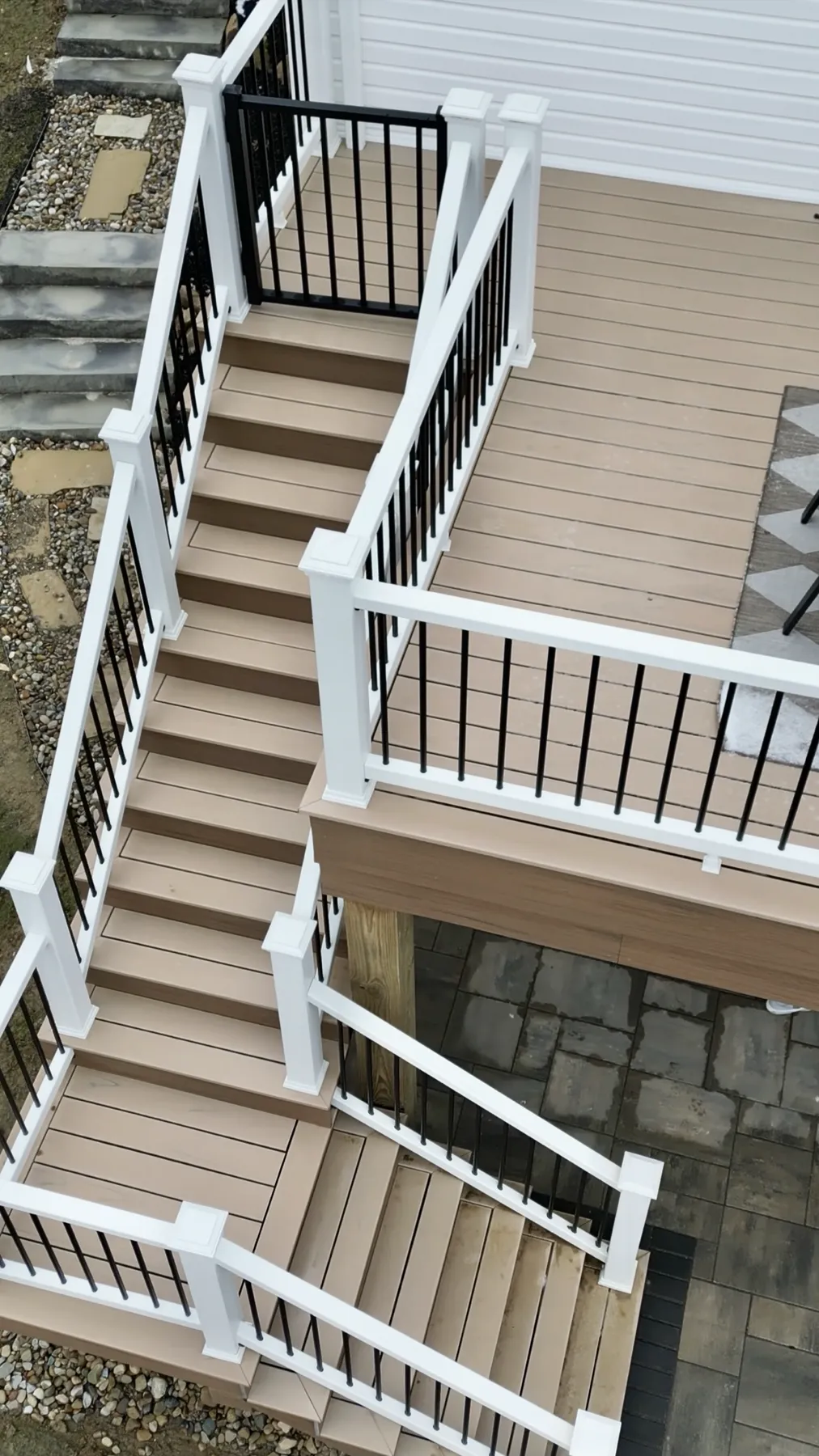

Stairs to the patio

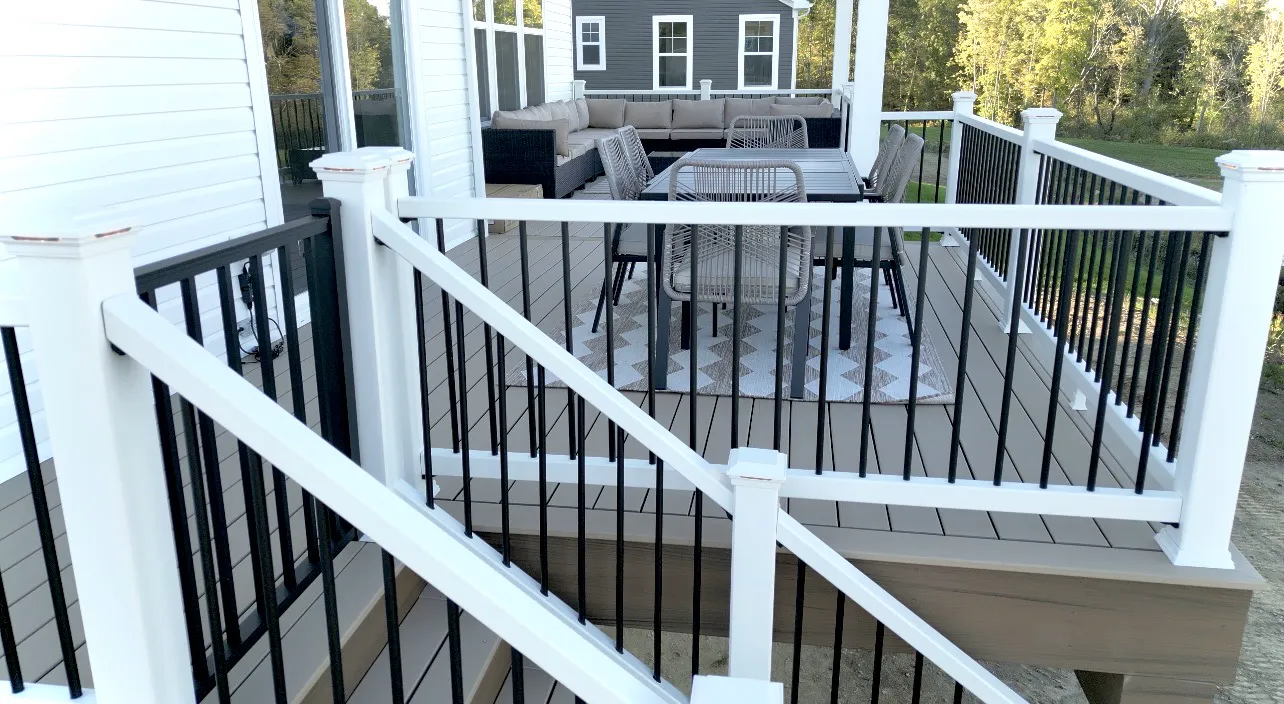

The covered upper deck and railing

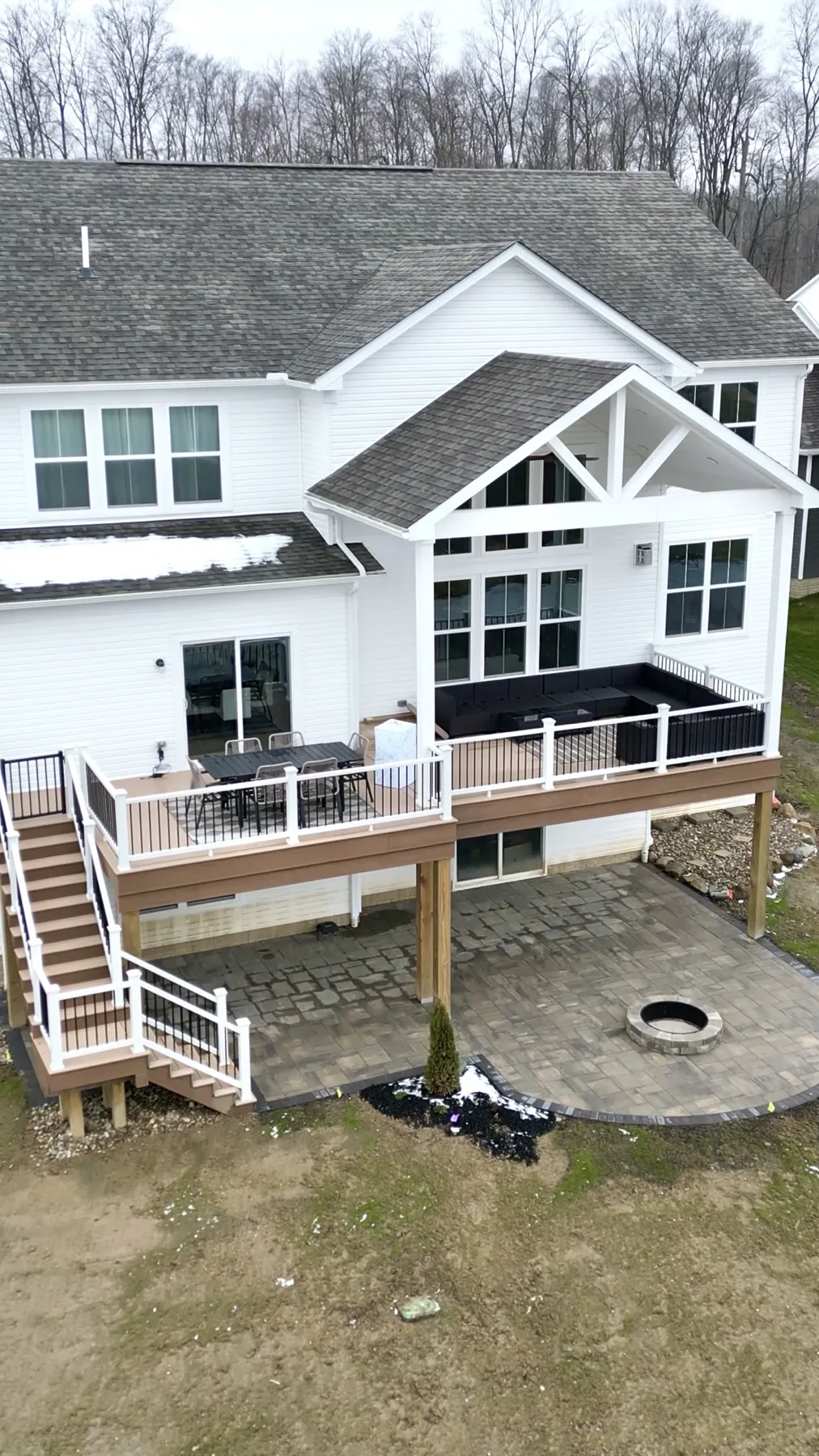

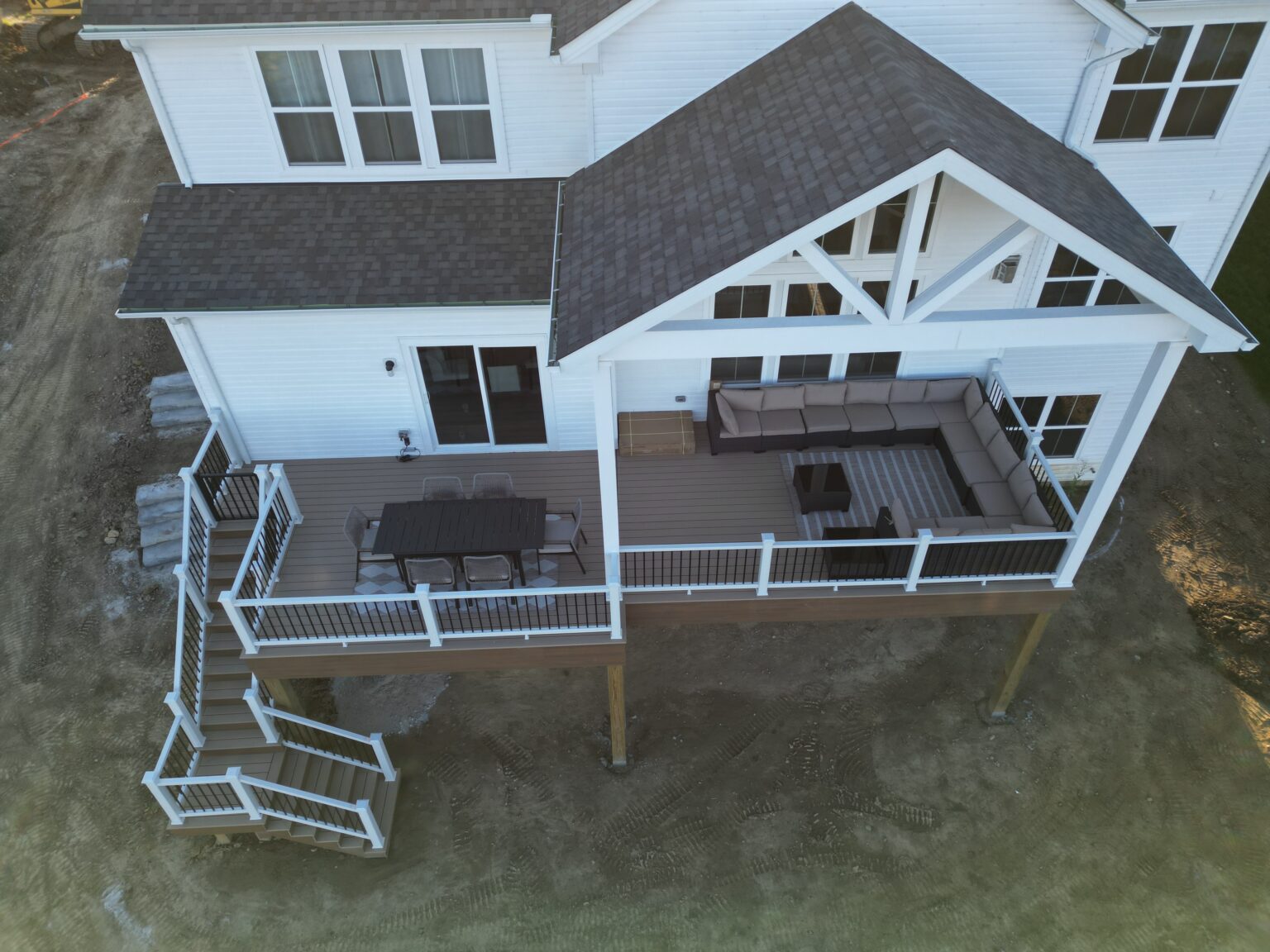

Aerial view of the upper deck and covere

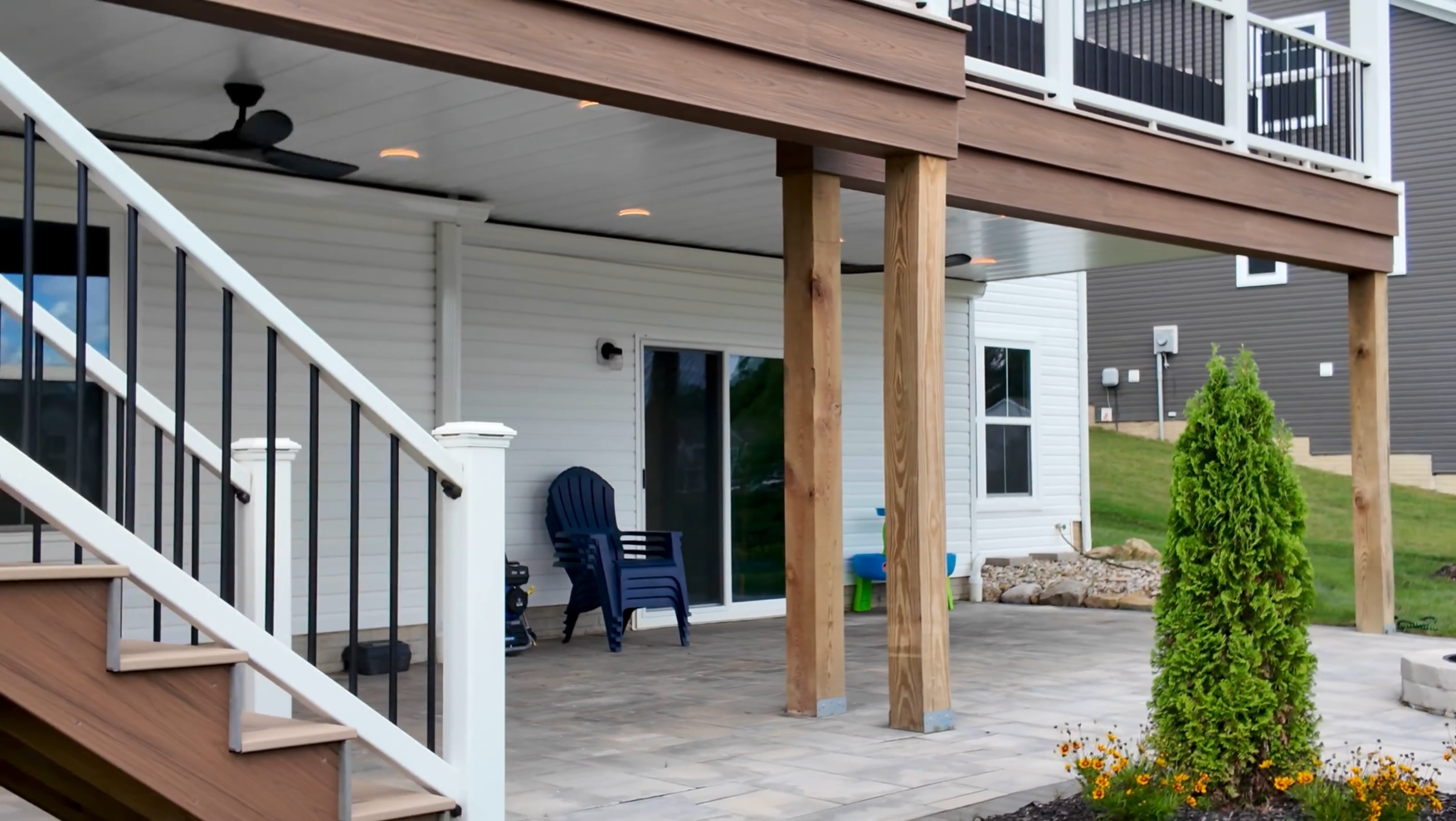

The finished deck, stairs, and paver pat
The homeowners on their new deck

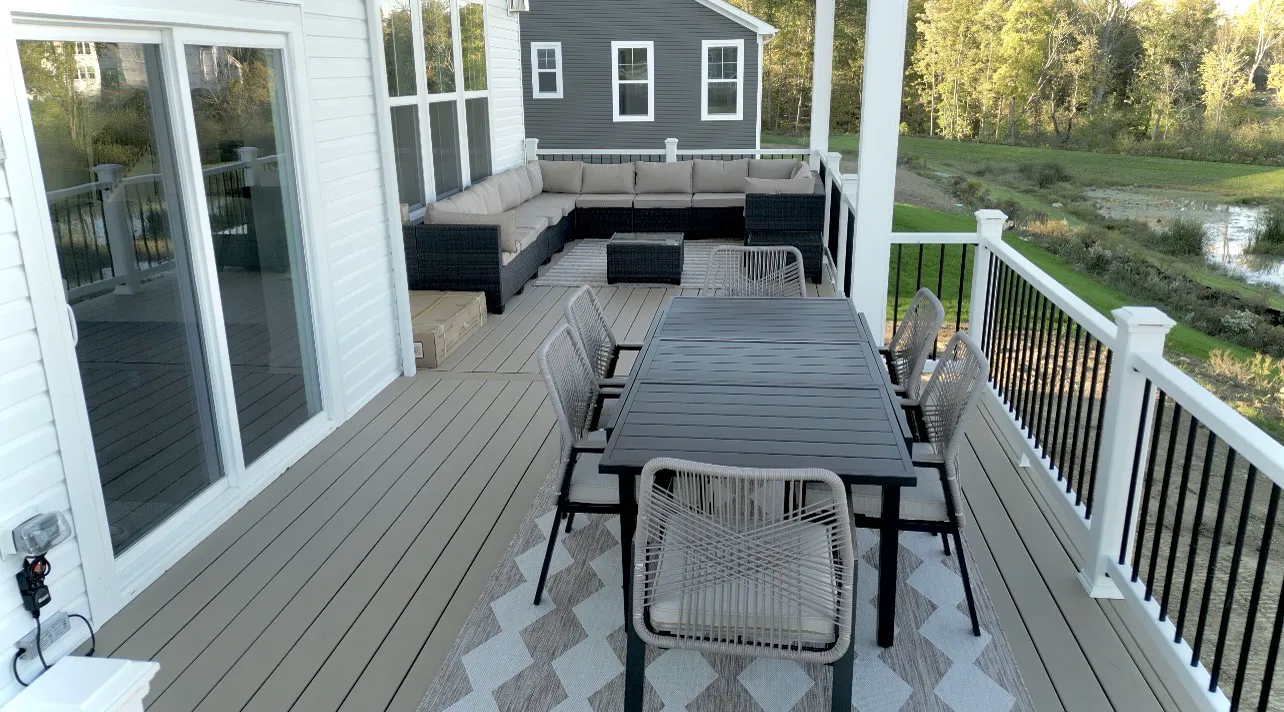

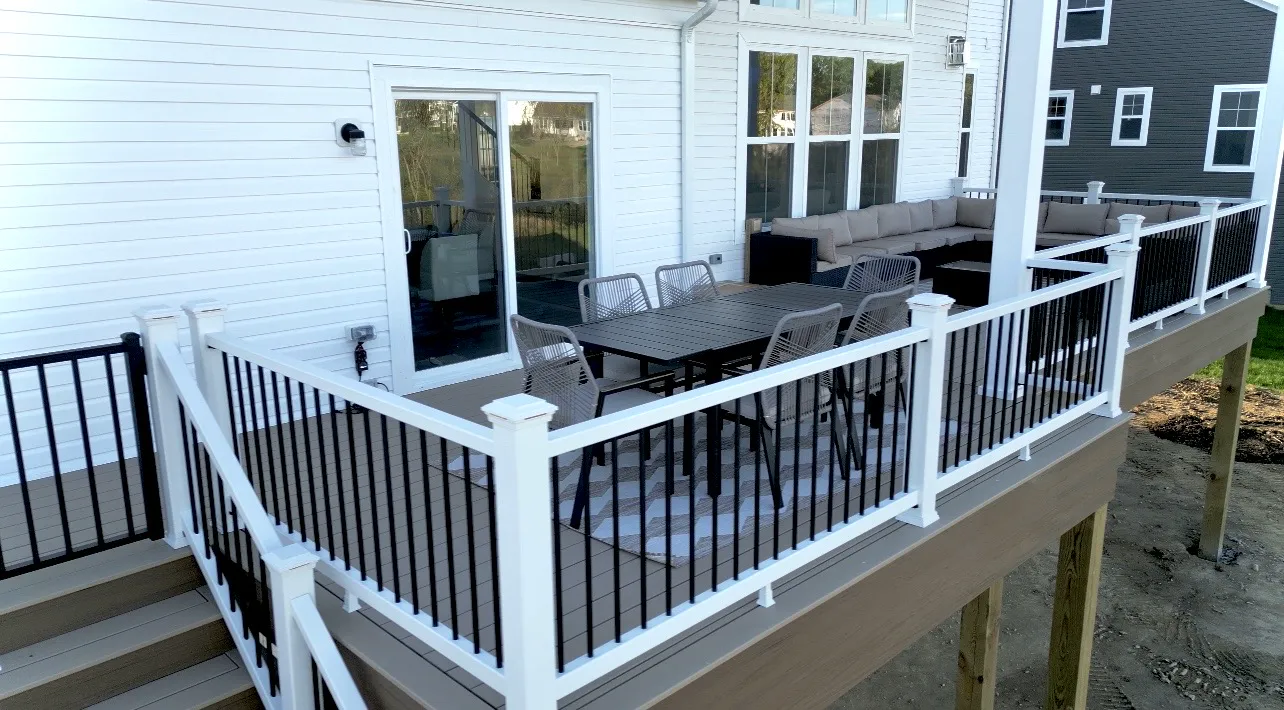

Dining and lounge areas looking out to t
Room for a full dining table and an outd
Wide stairs with a landing and a safety
Deck with pergola and patio builtQuestions we hear a lot
Can you build a roof and a deck at the same time?
Yes. We design them together, get the engineering done, and build it all with our own crew.
How do you keep the space under a deck dry?
We install an under deck system like OtterTite that catches water between the joists and carries it away, with a clean ceiling below.
How long did this project take?
About six weeks, from late August to early October.
